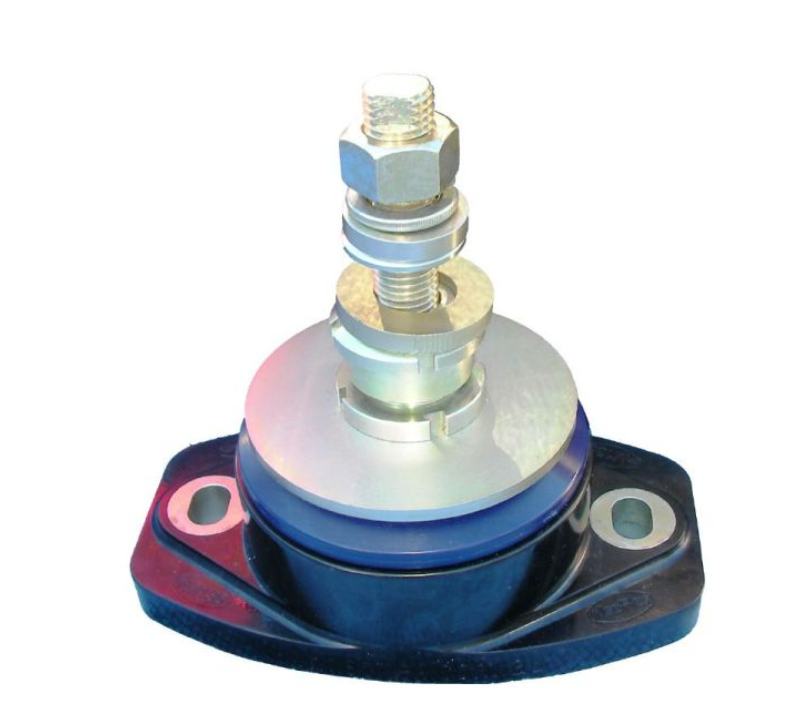

IsoFlex M136HD-24S Engine Mount
$1,002.99
Unit price
/
Unavailable
Couldn't load pickup availability
IsoFlex M136HD-24S Engine Mount
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 500-1200 | 1100-2640 |
| Base Foot Print (LxW) | 240 x 145 | 9.45 x 5.71 |
| Base Bolt Centers (C) | 182 | 7.17 |
| Base Bolt Diameter (D) | 16 | 5/8 |
| Base Thickness (T) | 25 | 0.98 |
| Stud Diameter (S) | 24 | M24 (1" approx) |
| Min Free Height (J) | 134 | 5.28 |
| Overall Height (H) | 220 | 8.66 |
| Weight | 5.2 | 11.4 |
ADJUSTING STUD MOUNTS (Classic M Mount Series)
Single stud mounts are used for standard applications where vibration dampening is required: marine engines, diesel engines, generators, machinery, pumps, etc. The Isoflex M Series is the original mount which has been superceded by the new generation IFV and MDV Series. Isoflex M Series mounts can be ordered for special applications and rebuild kits.
