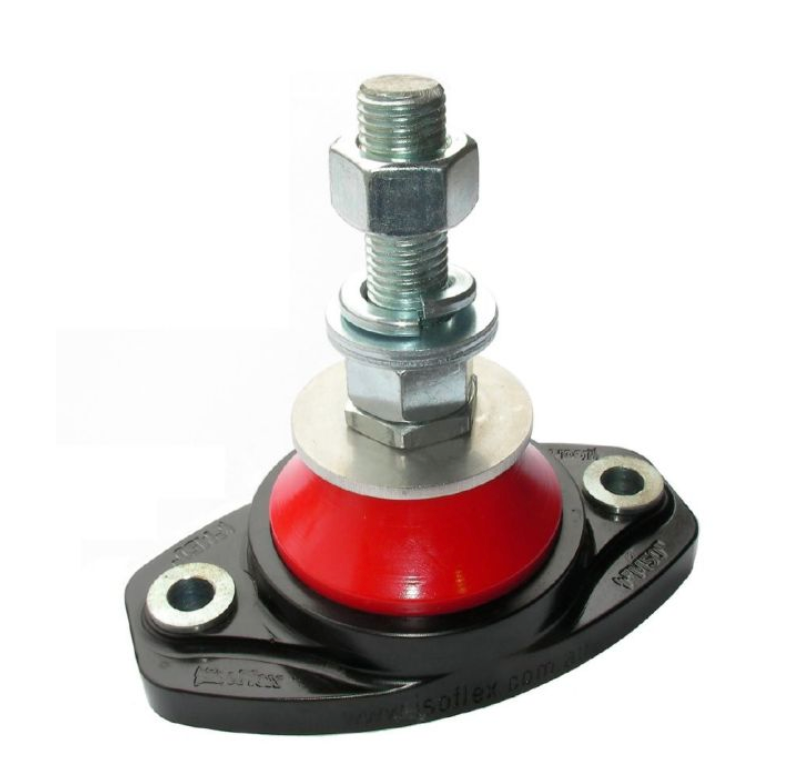

IsoFlex M55-16S Engine Mount
$173.03
Unit price
/
Unavailable
Couldn't load pickup availability
IsoFlex M55-16S Engine Mount
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 25-200 | 55-440 |
| Base Foot Print (LxW) | 134 x 75 | 5.28 x 2.95 |
| Base Bolt Centers (C) | 100-105 | 3.94 - 4.13 |
| Base Bolt Diameter (D) | 10 | 3/8 |
| Base Thickness (T) | 14.5 | 0.57 |
| Stud Diameter (S) | 16 | M16 (5/8" approx) |
| Min Free Height (J) | 68 | 2.68 |
| Overall Height (H) | 127 | 5.00 |
| Weight | 0.6 | 1.3 |
ADJUSTING STUD MOUNTS (Classic M Mount Series)
Single stud mounts are used for standard applications where vibration dampening is required: marine engines, diesel engines, generators, machinery, pumps, etc. The Isoflex M Series is the original mount which has been superceded by the new generation IFV and MDV Series. Isoflex M Series mounts can be ordered for special applications and rebuild kits.
IsoFlex M55-16S Engine Mount
