IsoFlex M75-20S Engine Mount

$315.45

Resilient Core Type

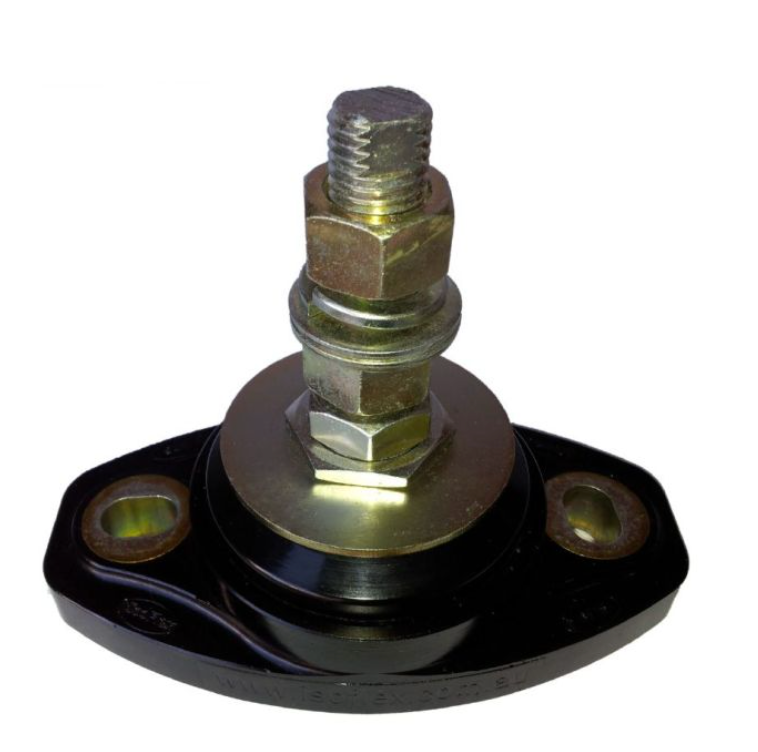

IsoFlex M75-20S Engine Mount

DOWNLOAD DATA SHEET

Feature Metric Imperial
Working Load per Mount 75-300 165-660
Base Foot Print (LxW) 177 x 98 6.97 x 3.86
Base Bolt Centers (C) 127 5.00
Base Bolt Diameter (D) 12 1/2
Base Thickness (T) 20 0.79
Stud Diameter (S) 20 M20 (3/4" approx)
Min Free Height (J) 92 3.62
Overall Height (H) 160 6.30
Weight 1.3 2.9



ADJUSTING STUD MOUNTS (Classic M Mount Series)

Single stud mounts are used for standard applications where vibration dampening is required: marine engines, diesel engines, generators, machinery, pumps, etc. The Isoflex M Series is the original mount which has been superceded by the new generation IFV and MDV Series. Isoflex M Series mounts can be ordered for special applications and rebuild kits.
