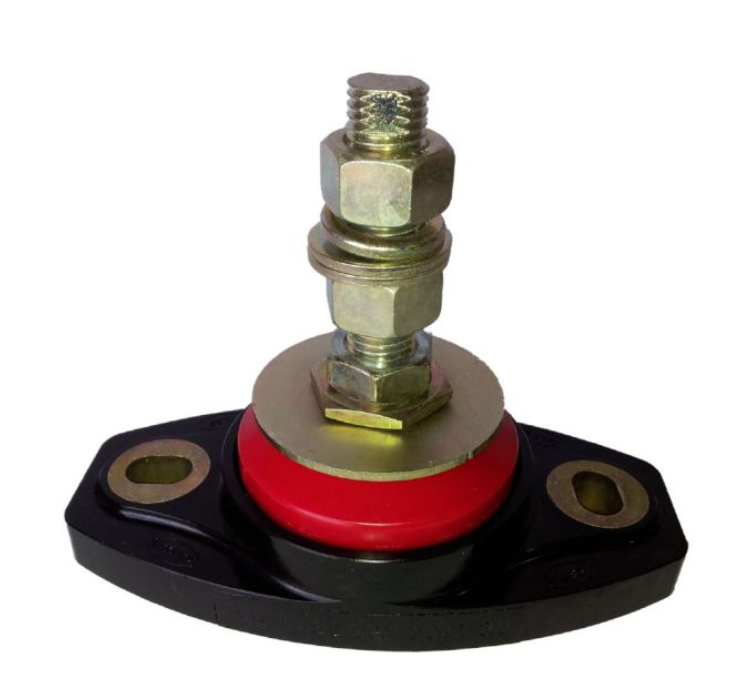

IsoFlex M85-20S Engine Mount
$315.45
Unit price
/
Unavailable
Couldn't load pickup availability
IsoFlex M85-20S Engine Mount
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 75-300 | 165-660 |
| Base Foot Print (LxW) | 190 x 98 | 7.48 x 3.86 |
| Base Bolt Centers (C) | 140 | 5.51 |
| Base Bolt Diameter (D) | 12 | 1/2 |
| Base Thickness (T) | 20 | 0.79 |
| Stud Diameter (S) | 20 | M20 (3/4" approx) |
| Min Free Height (J) | 92 | 3.62 |
| Overall Height (H) | 160 | 6.30 |
| Weight | 1.3 | 2.9 |
ADJUSTING STUD MOUNTS (Classic M Mount Series)
Single stud mounts are used for standard applications where vibration dampening is required: marine engines, diesel engines, generators, machinery, pumps, etc. The Isoflex M Series is the original mount which has been superceded by the new generation IFV and MDV Series. Isoflex M Series mounts can be ordered for special applications and rebuild kits.
IsoFlex M85-20S Engine Mount
