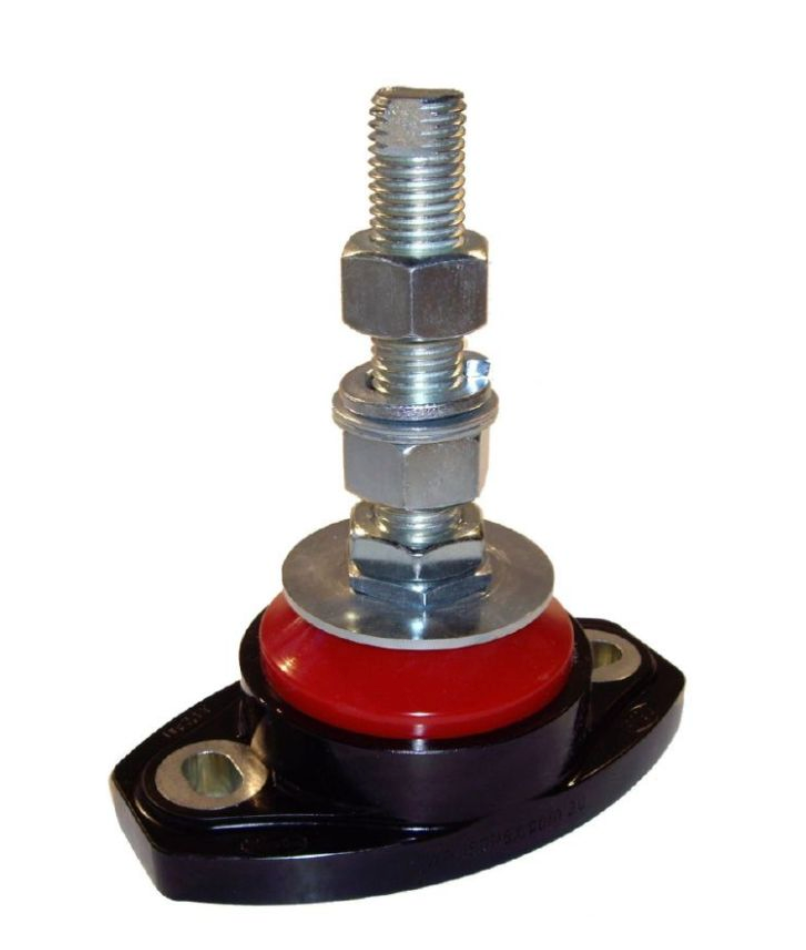

IsoFlex M90-24S Engine Mount
$392.65
Unit price
/
Unavailable
Couldn't load pickup availability
IsoFlex M90-24S Engine Mount
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 75-350 | 165-770 |
| Base Foot Print (LxW) | 177 x 100 | 6.97 x 3.94 |
| Base Bolt Centers (C) | 127 | 5.00 |
| Base Bolt Diameter (D) | 12 | 1/2 |
| Base Thickness (T) | 20 | 0.79 |
| Stud Diameter (S) | 24 | M24 (1" approx) |
| Min Free Height (J) | 104 | 4.09 |
| Overall Height (H) | 196 | 7.72 |
| Weight | 1.6 | 3.5 |
ADJUSTING STUD MOUNTS (Classic M Mount Series)
Single stud mounts are used for standard applications where vibration dampening is required: marine engines, diesel engines, generators, machinery, pumps, etc. The Isoflex M Series is the original mount which has been superceded by the new generation IFV and MDV Series. Isoflex M Series mounts can be ordered for special applications and rebuild kits.
IsoFlex M90-24S Engine Mount
