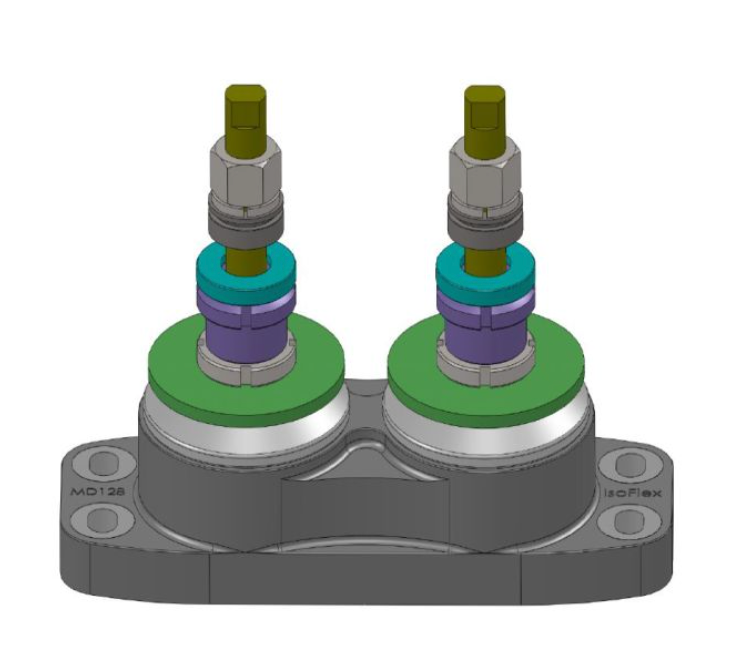

IsoFlex MD128HD-24DS Classic M Series Double & Bridge Style Mounts
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 500-1500 | 1100-3300 |
| Base Foot Print (LxW) | 360 x 128 | 14.17 x 5.04 |
| Base Bolt Centers (C) | 308 x 60 | 12.13 x 2.36 |
| Base Bolt Diameter (D) | 16 | 5/8 |
| Base Thickness (T) | 25 | 0.98 |
| Stud Diameter (S) | 2 x 24 | 2 x M24 (1" approx) |
| Min Free Height (J) | 134 | 5.28 |
| Overall Height (H) | 220 | 8.66 |
| Weight | 6.4 | 14.1 |
Double and bridge mounts are generally used for applications with high weight demands and/or higher thrust loads. They can be used in situations where six-mount systems have been used previously. These mounts make adjustment easier and more accurate, and work very well for V-drive engines for added stability. Used in marine and high performance applications including pilot boats, crew patrol boats, high speed RHIBS, fishing and dive vessels, pleasure craft and military spec. The Isoflex M Series is the original mount which has been superseded by the new generation IFV and MDV Series. M Series Mounts are available on special request.
