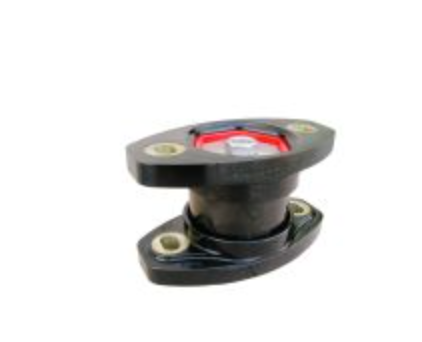

IsoFlex M75-16SS Superstructure and Wheelhouse Mounts
Couldn't load pickup availability
IsoFlex M75-16SS Superstructure and Wheelhouse Mounts
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 100-300 | 220–660 |
| Base Foot Print (LxW) | 177 x 98 | 7.0 x 3.9 |
| Base Bolt Centers (C) | 127 | 5.0 |
| Base Bolt Diameter (D) | 2 X 14 | 2 x 0.6 |
| Base Thickness (T) | 20 | 0.8 |
| Overall Height (H) | 100 | 3.9 |
Superstructure and Wheelhouse Mounts
Isoflex fail-safe isolation mounts provide vibration and electrical isolation of superstructure and wheelhouses from vessel hulls. Constructed from engineering polymer and stainless steel components to prevent rot and rust. These mounts can be tuned by changing the working core to suit different applications. Dimensions, including height, can be varied in some cases. Tested in all axes including inversion.
Frequently used in pilot boats, crew vessels and ferries.
Isoflex fail-safe isolation mounts provide vibration and electrical isolation of superstructure and wheelhouses from vessel hulls. Constructed from engineering polymer and stainless steel components to prevent rot and rust. These mounts can be tuned by changing the working core to suit different applications.
Dimensions, including height, can be varied in some cases. Minimum of 6 G force tested in all axes, including inversion applications.
