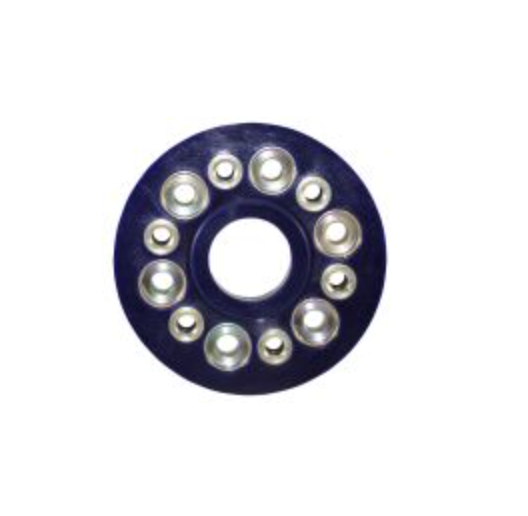

IsoFlex Gearbox Coupling IFC-6000-HT

$745.24
By Coastline Marine

Isoflex Model: IFC-6000-HT

Product Type: 6 Stud Coupling

DOWNLOAD DATA SHEET

IFC-6000-HT Specifications

Feature Metric Imperial
Gearbox Flange Bolt Circle Diameter 98.43 [3 7/8"] 3 7/8
Gearbox Flange Bolt Size 7/16" UNF 7/16" UNF
Gearbox Flange Index Ring Type M M
Gearbox Flange Index Ring Diameter 63.5 [2 1/2"] 2 1/2
Isoflex Coupling Outside Diameter 150 5.91
Isoflex Coupling Inside Diameter 50 1.97
Isoflex Coupling Thickness 32 1 1/4
Heavy Duty 1350 990
Medium Duty 2020 1480
Pleasure Craft 2350 1730
Approx Weight incl. Bolt Set 1.6 3.5
