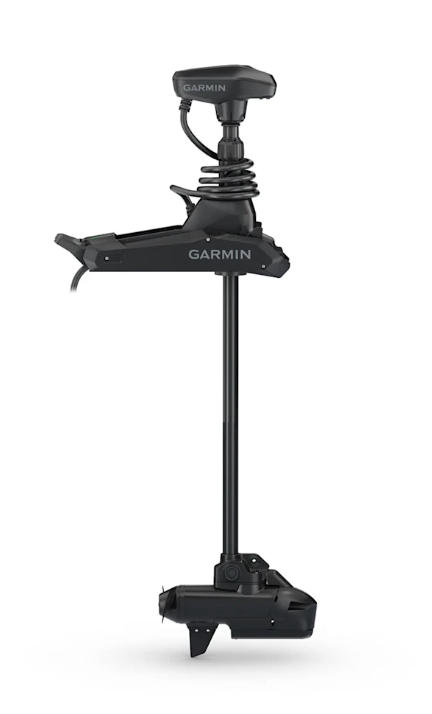

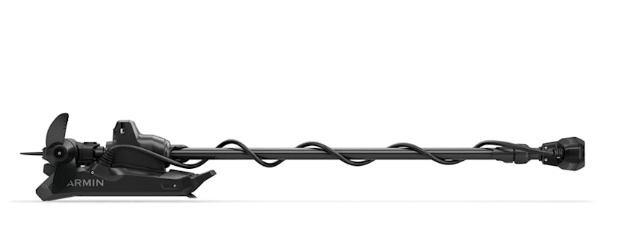

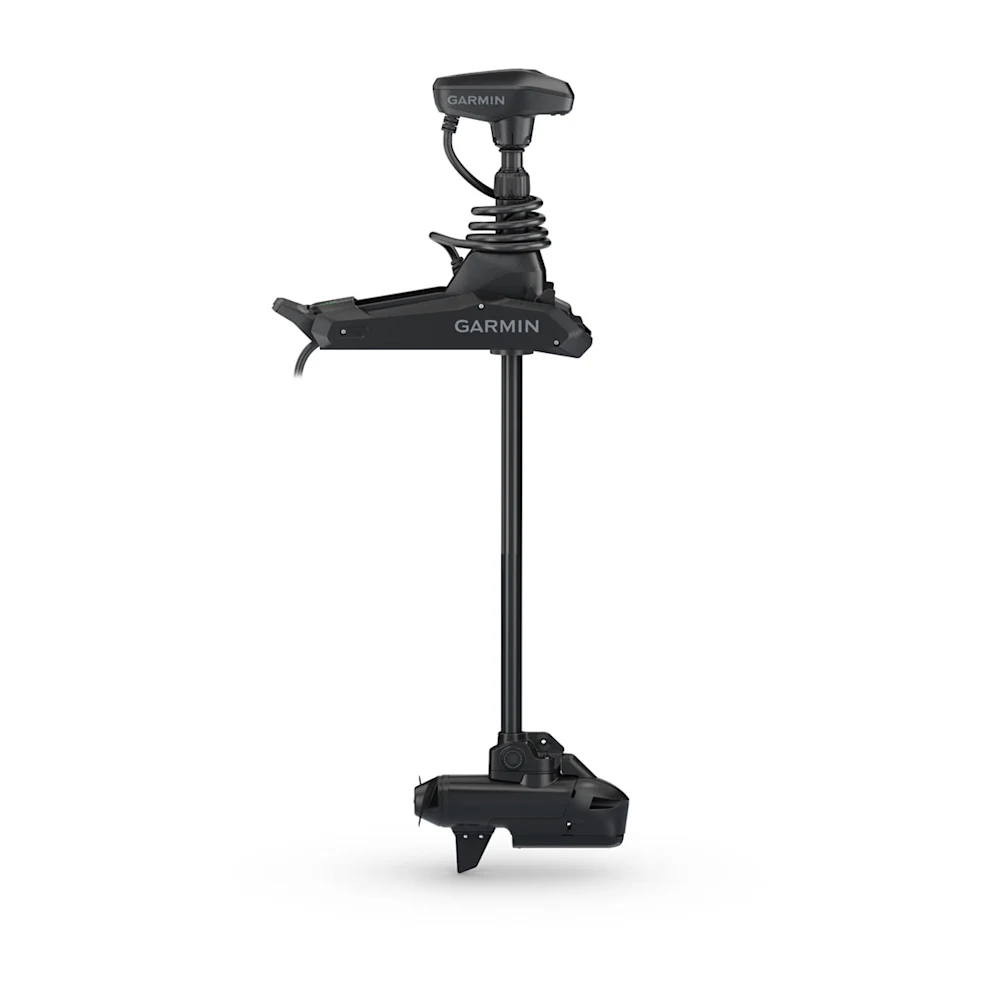

Garmin Force® Kraken Trolling motor Black 48" Trolling Motor with GT56UHD-TR Transducer

Name: Garmin Force® Kraken Trolling motor Black 48" Trolling Motor with GT56UHD-TR Transducer
Brand: Coastline Marine Electronics
SKU: 010-02573-30
Price: 6599.00 AUD
Availability: OutOfStock

$6,599.00

By Coastline Marine Electronics

PART NUMBER: 010-02573-30

Force^® Kraken Trolling motor

Black 48" Trolling Motor with GT56UHD-TR Transducer

PART NUMBER010-02573-30

$6,599.00AUD

48"63"75"90"

White Black

Estimated availability is 1 – 3 business days.

LiveScope^™ transducer not included.

Warranty / Availability of Repair Facilities & Parts

THERE’S A NEW LEGEND TO BEHOLD

The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.

INDUSTRY’S MOST POWERFUL TROLLING MOTOR; 100 LBS OF THRUST¹

WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS

STAY ON THE FISH WITH ANCHOR LOCK AND MULTI-BAND GPS

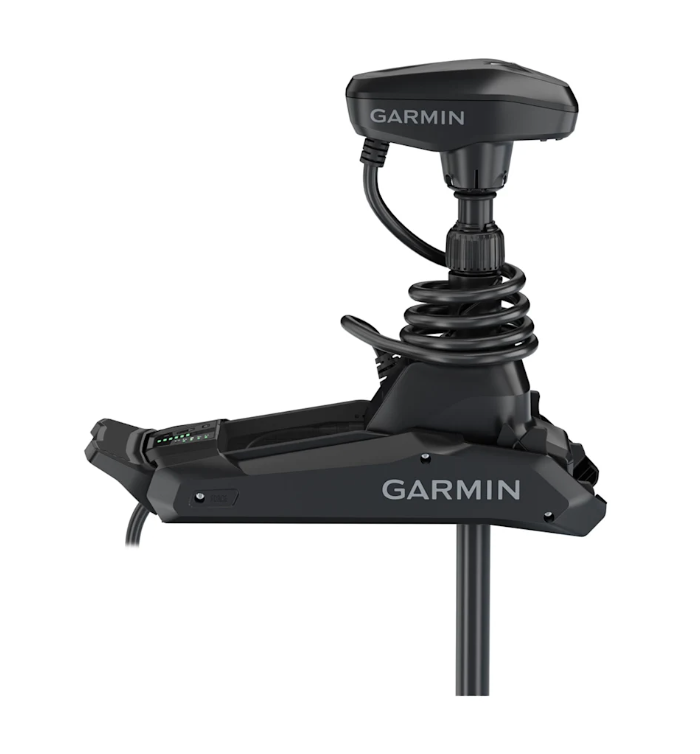

PIVOT-STYLE MOUNT FOR EASY INSTALLATION

AVAILABLE IN 48″, 63″ AND 75″ SHAFT LENGTHS

SEAMLESS CABLE INTEGRATION WITH LIVESCOPE^™ SONAR

WHAT YOU'LL LOVE

HIGH POWERED

With 100 lbs of thrust¹, Force Kraken is the most powerful trolling motor on the market.

POWER THAT LASTS

Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.

WHISPER QUIET

Don’t spook the fish; the motor is extremely quiet above and below the water.

PURPOSE-BUILT DESIGN

This trolling motor is optimised to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.

DESIGNED TO ENDURE

The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.

PERFECT FOR DEEP V HULLS

Get easy installation where bow space is limited, thanks to the pivot-style mount. The 48″, 63″ and 75″ shaft lengths accommodate many different boat sizes and deck configurations.

TOTAL CONTROL

STAY PUT

The anchor lock provides our most precise boat positioning technology to help keep the boat in one place.

FLOATING REMOTE

Use the included remote to help you navigate from anywhere in the boat with our simple point -and-go technology.

SMARTWATCH INTEGRATION

Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.

WIRELESS INTEGRATION

Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.

Sonar

INCLUDED SONAR

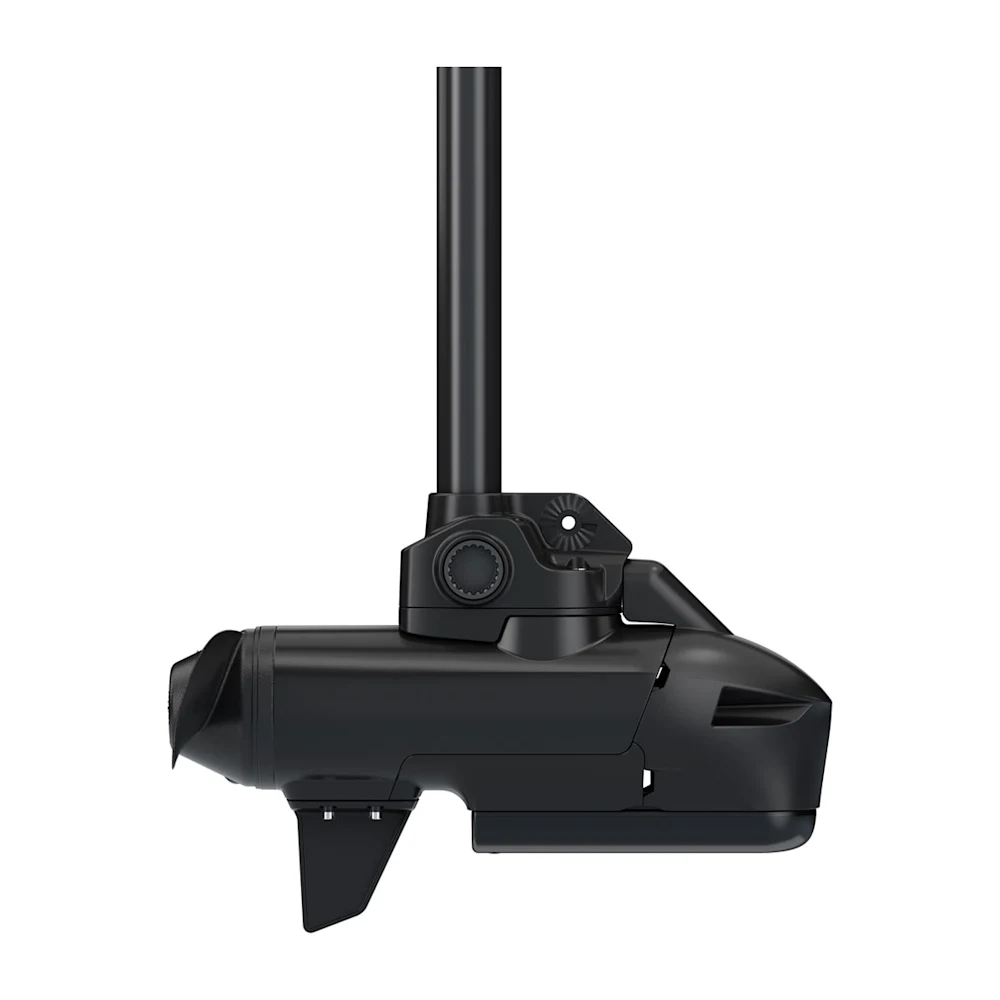

Get brilliant UHD sonar with the included GT56 transducer.

ULTRA HIGH-DEFINITION SONAR PICTURE

The brushless motor allows for clear sonar returns with extremely low levels of unwanted noise.

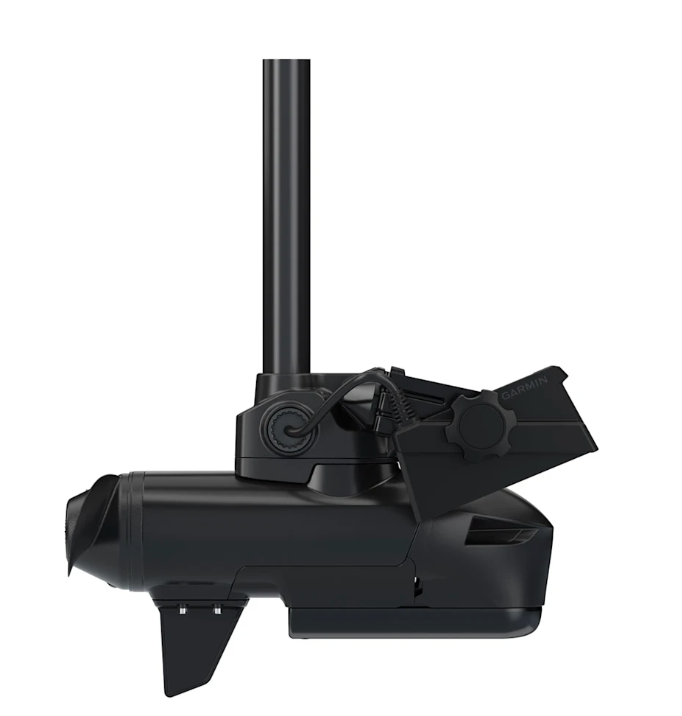

LIVESCOPE CABLE MANAGEMENT

Keep your LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).

¹In compliance with ISO standard 13342

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

SPECIFICATIONS

General
Color	Black
For use in	Freshwater, brackish water and saltwater
Mount style	Pivot-style mount
Max thrust	100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc
Voltage	24V_36V
Electric steering	Yes
Built-in heading sensor	Yes
Built-in GPS	Yes (dual frequency GPS)
Warranty	3-year, limited lifetime on shaft
Water rating	IPX7
Mounting location	Bow
Wireless remote	Yes (included)
Foot pedal compatible	Yes
Battery indicator	Yes
Variable speed control	Yes (20 steps)
Lighted direction indicator	Yes
quatix remote control supported	Yes

Sonar Features
Frequencies supported	CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) SideVü:455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
Transmit power	Traditional: 350 W ClearVü/SideVü 500 W
Maximum depth	CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft
Depth/Speed/Temperature	Depth and temperature
Number of pins	12-pin (orange connector)
LiveScope cable integration	Yes (LiveScope transducer and Kraken Mounting Bracket purchases required)

Autopilot Features
Route following	Yes
Anchor lock	Yes
Anchor lock jog	Yes
Heading hold	Yes
Cruise control	Yes
Gesture features	Yes (manual+, heading hold+, jog+)

Foot Pedal Features
Dimensions	12″ L x 9″ W x 4 1/2″ H
Wireless communication	Yes
Power installation	12V/24V/36V wired or battery powered (2 AA)
AA battery life	1 full season
Water rating	IPX7
Adjustable pedal resistance	Yes

Floats - Yes
Remote features
Display Size	1.2″ (30.4 mm) diameter
Display resolution	240 x 240 pixels
Display type	Colour, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter user-programmable keys	Yes
Autopilot feature control	Yes
Water rating	IPX7
BATTERY LIFE	Typical use with backlight at low, 43.2 weeks

IN THE BOX

Force^® Kraken Trolling motor
GT56UHD-TR transducer
Remote
High efficiency propeller
Assembly and mounting hardware
Documentation
