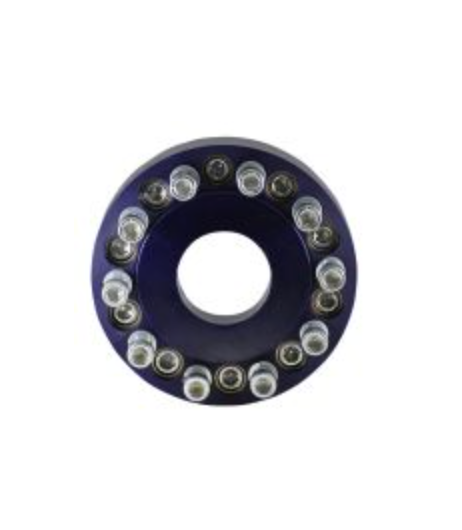

IsoFlex Gearbox Coupling IFC-10325-HT

$4,319.98
By Coastline Marine

IsoFlex Gearbox Coupling IFC-10325-HT

DOWNLOAD DATA SHEET

Feature Metric Imperial
Gearbox Flange Bolt Circle Diameter 170 6.69
Gearbox Flange Bolt Size M14 SHCS M14 SHCS [9/16" approx.]
Gearbox Flange Index Ring Type M M
Gearbox Flange Index Ring Diameter 140 5.51
Isoflex Coupling Outside Diameter 212 8.35
Isoflex Coupling Inside Diameter 75 2.95
Isoflex Coupling Thickness 45.0 1 3/4
Heavy Duty 5000 3680
Medium Duty 7500 5520
Pleasure Craft 8500 6260
Approx Weight incl. Bolt Set 5.0 11.0



Isoflex 10 Bolt Couplings

Ten bolt couplings are used on ten bolt hole gearbox output flanges. Spigots (pilots) can be either male or female. Isoflex couplings are configured to the most common flanges.
