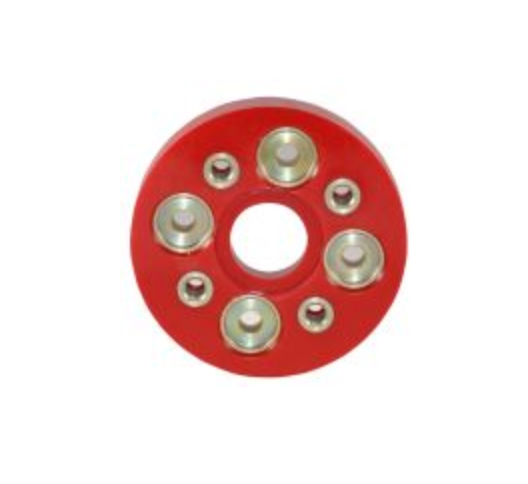

IsoFlex Gearbox Coupling IFC-4200-90

$361.24
By Coastline Marine

Isoflex Model: IFC-4200-90

Product Type: 4 Stud Coupling

DOWNLOAD DATA SHEET

IFC-4200-90 Specifications

Feature Metric Imperial
Gearbox Flange Bolt Circle Diameter 78 3.07
Gearbox Flange Bolt Size M10 M10 [3/8" approx.]
Gearbox Flange Index Ring Type F F
Gearbox Flange Index Ring Diameter 50 1.97
Isoflex Coupling Outside Diameter 125 4.92
Isoflex Coupling Inside Diameter 35 1.38
Isoflex Coupling Thickness 25.0 1
Heavy Duty 400 290
Medium Duty 600 440
Pleasure Craft 680 500
Approx Weight incl. Bolt Set 0.8 1.8
