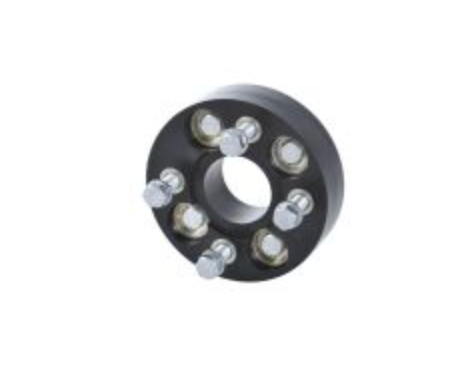

IsoFlex Gearbox Coupling IFC-4700-95
$556.08
Unit price
/
Unavailable
Couldn't load pickup availability
IsoFlex Gearbox Coupling IFC-4700-95
| Feature | Metric | Imperial |
|---|---|---|
| Gearbox Flange Bolt Circle Diameter | 95.25 [3 3/4"] | 3 3/4 |
| Gearbox Flange Bolt Size | 7/16" UNF | 7/16" UNF |
| Gearbox Flange Index Ring Type | F | F |
| Gearbox Flange Index Ring Diameter | 69.85 [2 3/4"] | 2 3/4 |
| Isoflex Coupling Outside Diameter | 135 | 5.31 |
| Isoflex Coupling Inside Diameter | 50 | 1.97 |
| Isoflex Coupling Thickness | 36 | 1.42 |
| Heavy Duty | 600 | 440 |
| Medium Duty | 900 | 660 |
| Pleasure Craft | 1000 | 730 |
| Approx Weight incl. Bolt Set | 1.2 | 2.6 |
Isoflex Spicer/Uni-Joint Couplings
Spicer or Uni-Joint couplings are used on drive shaft flanges configured to standard Spicer, Uni-Joint or cardan shaft drives. Please check torque demands and contact us to discuss your needs.
