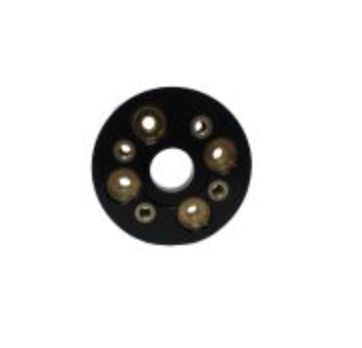

IsoFlex Gearbox Coupling IFC-4800-95
$361.24
Unit price
/
Unavailable
Couldn't load pickup availability
IsoFlex Gearbox Coupling IFC-4800-95
| Feature | Metric | Imperial |
|---|---|---|
| Gearbox Flange Bolt Circle Diameter | 79.38 [3 1/8"] | 3 1/8 |
| Gearbox Flange Bolt Size | 3/8" UNF | 3/8" UNF |
| Gearbox Flange Index Ring Type | F | F |
| Gearbox Flange Index Ring Diameter | 60.32 [2 3/8"] | 2 3/8 |
| Isoflex Coupling Outside Diameter | 125 | 4.92 |
| Isoflex Coupling Inside Diameter | 35 | 1.38 |
| Isoflex Coupling Thickness | 25.0 | 1 |
| Heavy Duty | 310 | 220 |
| Medium Duty | 465 | 340 |
| Pleasure Craft | 525 | 380 |
| Approx Weight incl. Bolt Set | 0.7 | 1.5 |
Isoflex Spicer/Uni-Joint Couplings
Spicer or Uni-Joint couplings are used on drive shaft flanges configured to standard Spicer, Uni-Joint or cardan shaft drives. Please check torque demands and contact us to discuss your needs.
