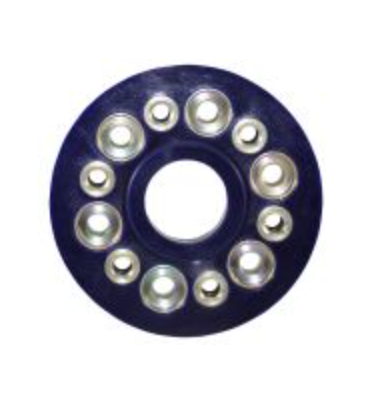

Isoflex Gearbox Coupling IFC-6000-HT
$745.24
Unit price
/
Unavailable
Couldn't load pickup availability
Isoflex Gearbox Coupling IFC-6000-HT
| Feature | Metric | Imperial |
|---|---|---|
| Gearbox Flange Bolt Circle Diameter | 98.43 [3 7/8"] | 3 7/8 |
| Gearbox Flange Bolt Size | 7/16" UNF | 7/16" UNF |
| Gearbox Flange Index Ring Type | M | M |
| Gearbox Flange Index Ring Diameter | 63.5 [2 1/2"] | 2 1/2 |
| Isoflex Coupling Outside Diameter | 150 | 5.91 |
| Isoflex Coupling Inside Diameter | 50 | 1.97 |
| Isoflex Coupling Thickness | 32 | 1 1/4 |
| Heavy Duty | 1350 | 990 |
| Medium Duty | 2020 | 1480 |
| Pleasure Craft | 2350 | 1730 |
| Approx Weight incl. Bolt Set | 1.6 | 3.5 |
Isoflex 6 Bolt Couplings
Six bolt couplings are used on six bolt hole gearbox output flanges. Spigots or pilots can be either male or female. Isoflex couplings are configured to the most common flanges. Note: certain couplings need a T bush kit (contact us to confirm prior to purchase).
The IV range of Isoflex couplings is specifically developed to operate in a tensile condition created by integral V drives.
