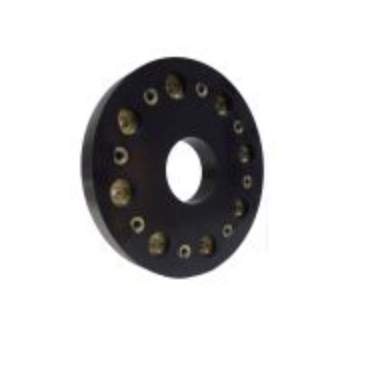

IsoFlex Gearbox Coupling IFC-81710-HT
$1,052.21
Unit price
/
Unavailable
Couldn't load pickup availability
IsoFlex Gearbox Coupling IFC-81710-HT
| Feature | Metric | Imperial |
|---|---|---|
| Gearbox Flange Bolt Circle Diameter | 184.15 [7 1/4"] | 7 1/4 |
| Gearbox Flange Bolt Size | 3/8" UNF | 3/8" UNF |
| Gearbox Flange Index Ring Type | F | F |
| Gearbox Flange Index Ring Diameter | 196.85 [7 3/4"] | 7 3/4 |
| Isoflex Coupling Outside Diameter | 241 | 9.50 |
| Isoflex Coupling Inside Diameter | 74 | 2.93 |
| Isoflex Coupling Thickness | 28 | 1.1 |
| Heavy Duty | ||
| Medium Duty | ||
| Pleasure Craft | ||
| Approx Weight incl. Bolt Set | 2.4 | 5.3 |
Isoflex Spicer/Uni-Joint Couplings
Spicer or Uni-Joint couplings are used on drive shaft flanges configured to standard Spicer, Uni-Joint or cardan shaft drives. Please check torque demands and contact us to discuss your needs.
