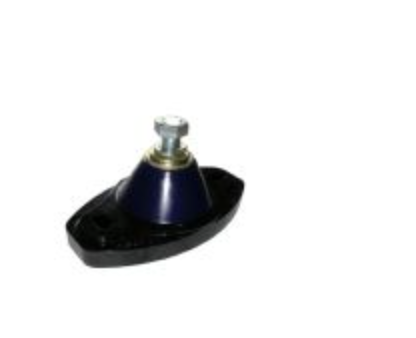

IsoFlex GPM15FS-20B Engine Mount
$213.23
Unit price
/
Unavailable
Couldn't load pickup availability
IsoFlex GPM15FS-20B Engine Mount
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 75-300 | 165-660 |
| Base Foot Print (LxW) | 180 x 98 | 7.09 x 3.86 |
| Base Bolt Centers (C) | 120-140 | 4.7-5.5 |
| Base Bolt Diameter (D) | 12 | 1/2 |
| Base Thickness (T) | 20 | 0.79 |
| Bolt Diameter (B) | 20 | M20 (3/4" approx) |
| No. of Bolts | 2 | 2 |
| Min Free Height (J) | 60 | 2.36 |
| Weight | 0.60 | 1.3 |
Isoflex general purpose mounts are a cost effective choice for many different applications where there is no thrust involved. These are made with our highly resistant co-polymer and marine alloy hold-down bases for excellent durability and longevity.
Used in general applications where vibration can be an issue, including air conditioning units, pumps, compressors, generators, mobile light towers, construction equipment and mining equipment.
