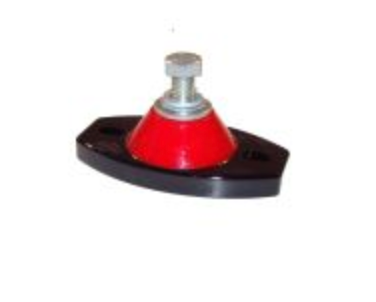

IsoFlex GPM7-12B Engine Mount

$64.45

Resilient Core Type

IsoFlex GPM7-12B Engine Mount

DOWNLOAD DATA SHEET

Feature Metric Imperial
Working Load per Mount 20-120 44-264
Base Foot Print (LxW) 112 x 64 4.41 x 2.52
Base Bolt Centers (C) 75-89 3.0-3.5
Base Bolt Diameter (D) 8 5/16
Base Thickness (T) 12 0.48
Bolt Diameter (B) 12 M12 (1/2" approx)
No. of Bolts 2 2
Min Free Height (J) 31 1.22
Weight 0.1 0.2



Isoflex general purpose mounts are a cost effective choice for many different applications where there is no thrust involved. These are made with our highly resistant co-polymer and marine alloy hold-down bases for excellent durability and longevity.

Used in general applications where vibration can be an issue, including air conditioning units, pumps, compressors, generators, mobile light towers, construction equipment and mining equipment.
