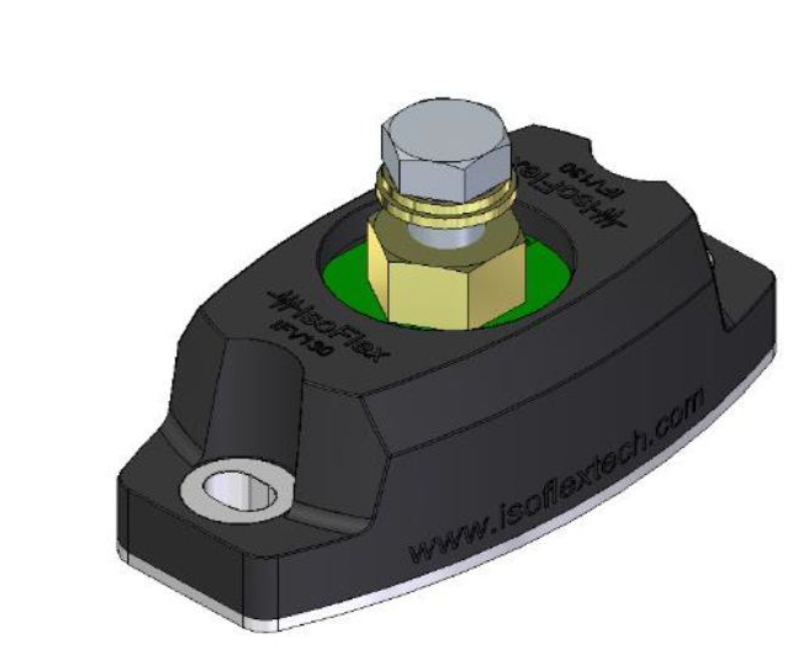

Isoflex IFV130XHD-20B Engine Mount
$606.94
Unit price
/
Unavailable
Couldn't load pickup availability
Isoflex IFV130XHD-20B Engine Mount
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 150 - 850 | 330 - |
| Base Foot Print (LxW) | 230 x 110 | 9.06 x 4.33 |
| Base Bolt Centers (C) | 182 | 7.17 |
| Base Bolt Diameter (D) | 16 | 5/8 |
| Base Thickness (T) | 30 | 1.18 |
| Bolt Diameter (B) | 20 | M20 (3/4" approx) |
| Min Free Height (J) | 90 | 3.54 |
| Weight | 2.3 | 5.1 |
B type bolt-down engine and machinery mounts are designed for marine, generators and other general applications. These mounts are fail safe ie. captured design.
Mounts are fitted with patented 360 degree integral thrust ring for enhanced stability. All metal components are zinc-plated to ASTM B633 SC3 standard. The bolt length required is dependent on the application. A standard length bolt is supplied. Allow a minimum of 1 x bolt diameter and maximum of 1.5 x bolt diameter into the mount.
2 x flat washers and 1 x spring washer are supplied. Ensure that they are fitted properly. Base bolts are not supplied. Stainless steel fittings available on request.
