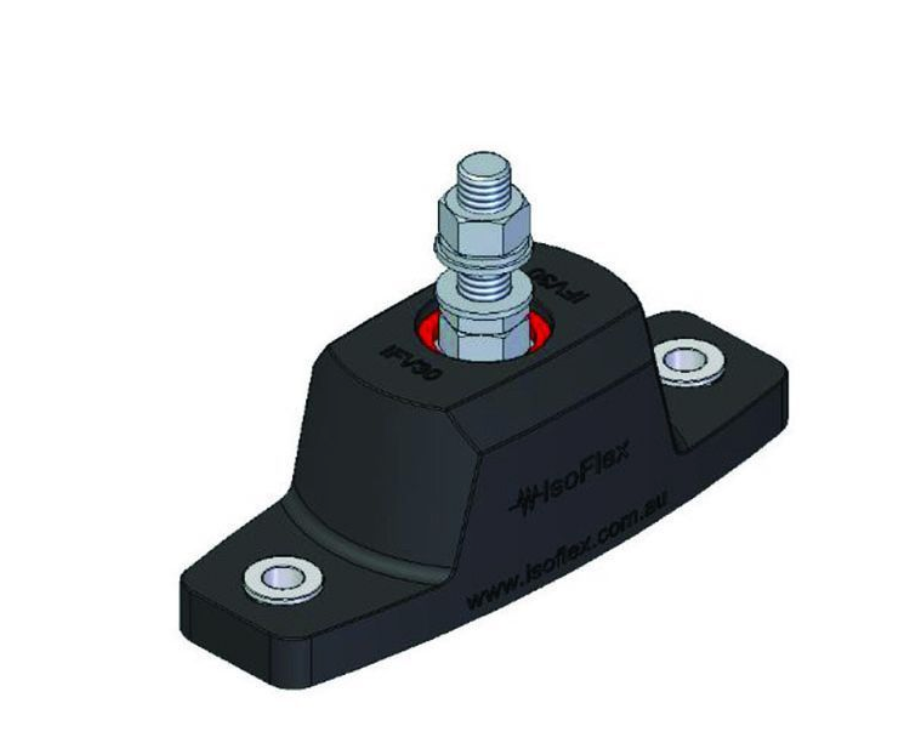

Isoflex IFV30-16S Engine Mount
Isoflex self-aligning adjusters increase the mount's stud strength 3x by providing a compression fit. Our adjusters allow up to 4 degrees of bracket-to-bearer misalignment to reduce point loading.
- Stud size 5/8" (M16)
- 6.85" mounting center (174mm)
- Minimum free height 3.82" (97mm)
- Provides at least 85% vibration isolation at worst case engine idle (4cyl and above) = less equipment fatigue, maintenance and associated noise
- Corrosion proof, electrically inert, engineering grade polymers resist oil, water and hydraulic fluids
- Metal components: marine alloy, stainless steel and components zinc plated to ASTM B633 Type II SC3
- Fail safe
- Easy to install
- DNV Type Approved
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 25-150 | 55-330 |
| Base Foot Print (LxW) | 220 x 75 | 8.66 x 2.95 |
| Base Bolt Centers (C) | 174 | 6.85 |
| Base Bolt Diameter (D) | 10 | 3/8 |
| Base Thickness (T) | 15 | 0.59 |
| Stud Diameter (S) | 16 | M16 (5/8" approx) |
| Min Free Height (J) | 95 | 3.74 |
| Overall Height (H) | 144 | 5.67 |
| Weight | 1.1 | 2.4 |
S Type adjusting stud engine and machinery mounts are designed specifically for marine, high performance and other thrust load installations where height adjustment is required. These mounts are complete with high tensile studs and are fail-safe in their design, which means that even in a knock-down or total inversion, these mounts can hold the weight of the engine.
Mounts are fitted with a patented integral thrust ring for enhanced stability. All metal components are a combination of marine alloy, stainless steel and zinc plated carbon steel to ASTM B633 SC3 standard. Base bolts are not supplied. Stainless steel fittings are available on request. Swivel adjusters are fitted to 20mm and 24mm studs on most mounts (contact us for clarification prior to purchase).
Single stud mounts are used for standard applications where vibration dampening is required: marine engines, diesel engines, generators, machinery, pumps, etc.
