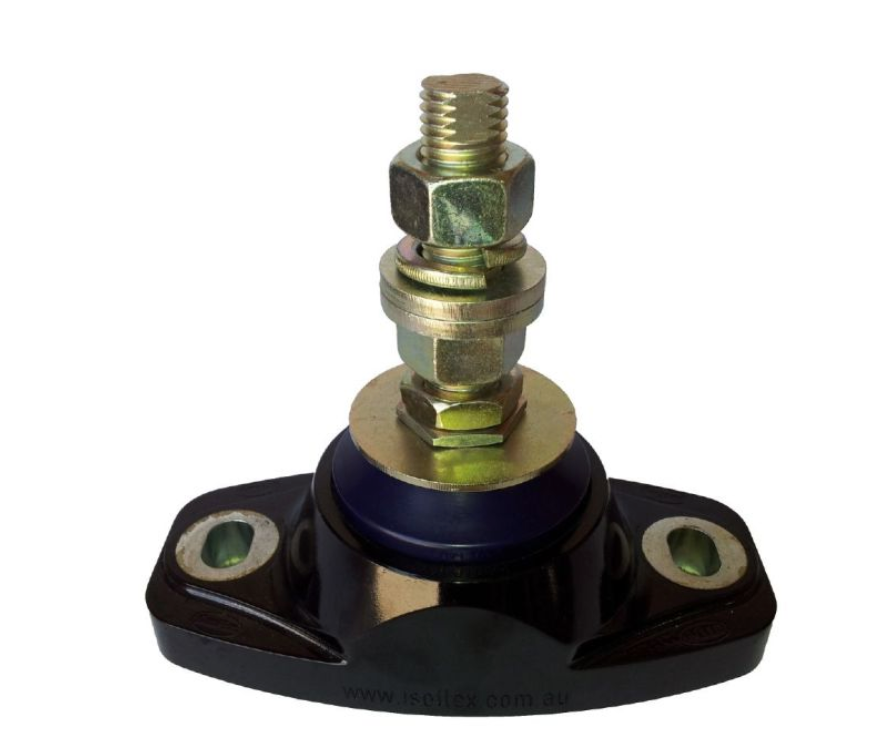

IsoFlex M110-24S Engine Mount
$465.85
Unit price
/
Unavailable
Couldn't load pickup availability
IsoFlex M110-24S Engine Mount
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 75-350 | 165-770 |
| Base Foot Print (LxW) | 220 x 106 | 8.66 x 4.17 |
| Base Bolt Centers (C) | 170 | 6.69 |
| Base Bolt Diameter (D) | 16 | 5/8 |
| Base Thickness (T) | 25 | 0.98 |
| Stud Diameter (S) | 24 | M24 (1" approx) |
| Min Free Height (J) | 122 | 4.80 |
| Overall Height (H) | 214 | 8.43 |
| Weight | 2.4 | 5.3 |
ADJUSTING STUD MOUNTS (Classic M Mount Series)
Single stud mounts are used for standard applications where vibration dampening is required: marine engines, diesel engines, generators, machinery, pumps, etc. The Isoflex M Series is the original mount which has been superceded by the new generation IFV and MDV Series. Isoflex M Series mounts can be ordered for special applications and rebuild kits.
