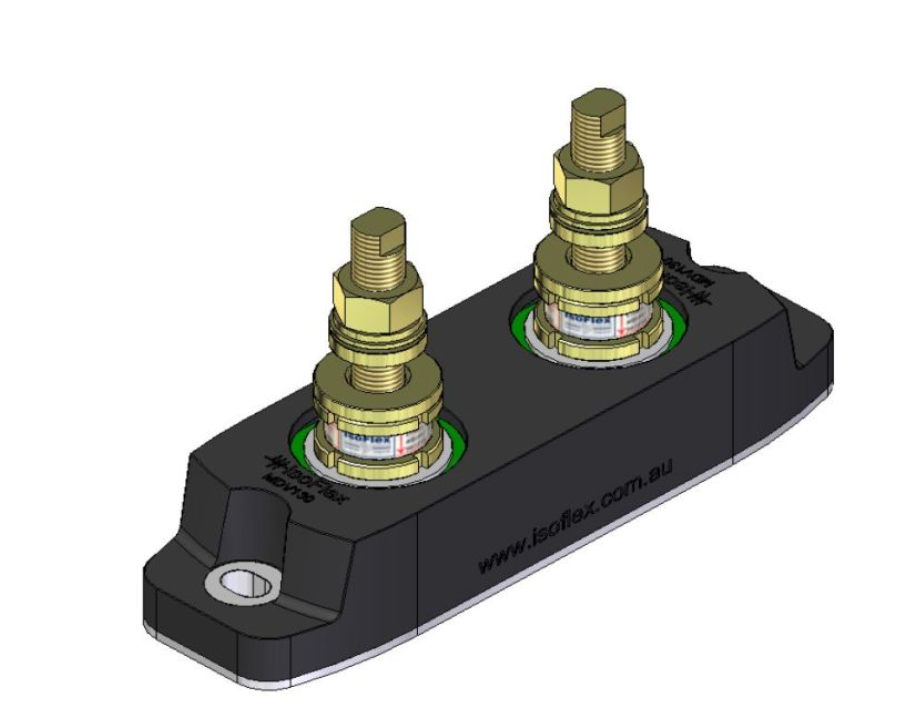

IsoFlex Engine Mount - MDV130XHD-24DS
| Feature | Metric | Imperial |
|---|---|---|
| Working Load per Mount | 300 - 1800 | 660 - 3970 |
| Base Foot Print (LxW) | 370 x 110 | 14.57 x 4.33 |
| Base Bolt Centers (C) | 308 | 12.13 |
| Base Bolt Diameter (D) | 16 | 5/8 |
| Base Thickness (T) | 30 | 1.18 |
| Stud Diameter (S) | 2 x 24 | 2 x M24 (1" approx) |
| Min Free Height (J) | 110 | 4.33 |
| Overall Height (H) | 200 | 7.87 |
| Weight | 6.2 | 13.6 |
Mounts can be supplied in 50, 60, 70, 75, 80, 90 Duro subject to application.
Adjusting Stud Mounts
S Type adjusting stud engine and machinery mounts are designed specifically for marine, high performance and other thrust load installations where height adjustment is required. These mounts are complete with high tensile studs and are fail-safe in their design, which means that even in a knock-down or total inversion, these mounts can hold the weight of the engine.
Mounts are fitted with a patented integral thrust ring for enhanced stability. All metal components are a combination of marine alloy, stainless steel and zinc plated carbon steel to ASTM B633 SC3 standard. Base bolts are not supplied. Stainless steel fittings are available on request. Swivel adjusters are fitted to 20mm and 24mm studs on most mounts.
Double & Bridge Style Mounts
Double and/or bridge mounts are generally used for applications with high weight demands and/or higher thrust loads. They can be used in situations where six-mount systems have been used previously. These mounts make adjustment easier and more accurate, and work very well for V drives for added stability.
