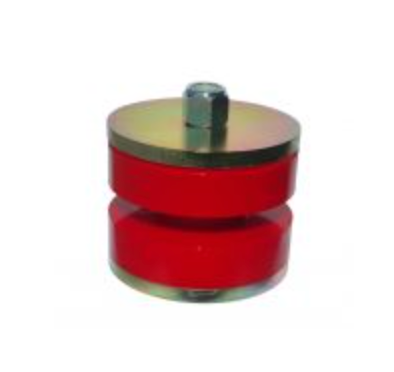

IsoFlex MT58401012 Dual Compression Engine Mount

$49.29

IsoFlex MT58401012 Dual Compression Engine Mount

DOWNLOAD DATA SHEET

Feature Metric Imperial
Outside Dia 58 2.3
Bracket Hole Dia 40 1.6
Bracket Thickness 10 0.4
Bolt Dia M12 M12 (1/2" approx)
Top Core Height 12 0.5
Bottom Core Height 12 0.5
Working Load 50A Duro
Working Load 60A Duro
Working Load 70A Duro
Working Load 75A Duro



Isoflex dual compression mounts are designed for applications where there is load in both directions. These are made out of Isoflex’s highly resistant engineering polymer, which has superior longevity and performance over standard rubbers.

Isoflex dual compression mounts are useful for industrial equipment such as fork lift engines, material handling equipment, operator’s cabins, generators and other equipment.
